Tutorial: Updating Raster NoData Value with Rasterio

A raster NoData value is a special value assigned to cells in a raster dataset to indicate the absence of valid data for that location. It marks areas where there is no information or where data is missing, ensuring that these cells are excluded from calculations or analysis.

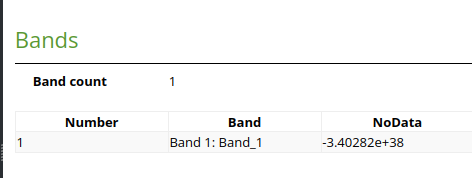

This is the nodata value before update

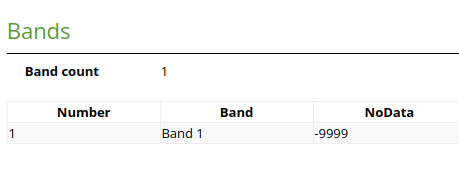

This is the nodata value after update

In the CPLUS API, which is part of the CPLUS Plugin that we are building for Conservation International, we integrate Natural Climate Solution (NCS) Pathways from Naturebase. In our workflow, we update raster NoData value to -9999, to enable performing raster calculations. We will be using Rasterio in this tutorial, so you need to make sure you have it installed.

Once you have Rasterio on your system, you can follow this snippet.

import rasterio




input_raster = 'input_raster.tiff'

output_raster = 'output_raster.tiff'

new_nodata_value = -9999




with rasterio.open(input_raster) as dataset:

    profile = dataset.profile

    data = dataset.read()




    # Set the new nodata value in the profile

    profile.update(nodata=new_nodata_value)




    # Replace the current nodata value with the new nodata value in the data array

    data[data == dataset.nodata] = new_nodata_value




    # Write the output raster with the updated nodata value

    with rasterio.open(output_path, "w", **profile) as dst:

            dst.write(data)

I will explain the snippets

Define the input raster, output raster, and nodata value

input_raster = 'input_raster.tiff'

output_raster = 'output_raster.tiff'

new_nodata_value = -9999

Open input raster, then read the profile and the data. Raster profile basically contains raster metadata, like nodata value, block size, etc.

with rasterio.open(input_raster) as dataset:

    profile = dataset.profile

    data = dataset.read()

Set NoData value in the profile and replace the NoData value with the new value

    # Set the new nodata value in the profile

    profile.update(nodata=new_nodata_value)



    # Replace the current nodata value with the new nodata value in the data array

    data[data == dataset.nodata] = new_nodata_value

Finally, write the data into a raster file using the updated profile.

    # Write the output raster with the updated nodata value

    with rasterio.open(output_path, "w", **profile) as dst:

            dst.write(data)

You can customise the snippets above to suit your needs. For example, you can set the output and input raster paths based on your own data.
