Recently we have been working on a project that involves simulating the 1 in 50k topographic maps in South Africa.
Recently we have been working on a project that involves simulating the 1 in 50k topographic maps in South Africa. Since we are using QGIS Server to print the map all the logic is set up in print composer. All maps generated are dynamic (users can select a specific area within South Africa to print) and QGIS Server will use the map template to generate the map.

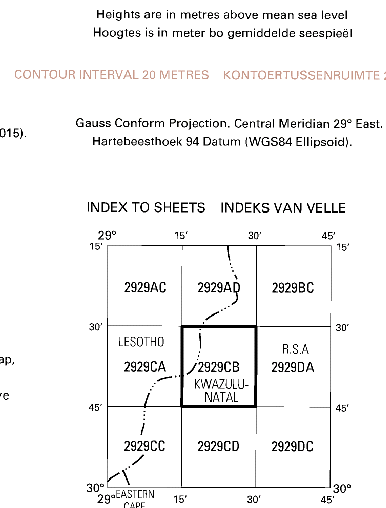

On each topographic map is printed map sheets that correspond to the printed area as depicted below
In order to generate the list as above, I had to do an intersection between the map extent and map layer in QGIS. Since the attributes of layers are not exposed I could not use in built expressions.
Getting extent of a map using QGIS expressions
Where main_map is the Item ID of a map. This will return a QGIS Geometry which can then be used to intersect the map layer.
Writing a custom function in QGIS
In order to achieve what I needed, I had to write a custom QGIS function to do the map intersects with the layer features.
from qgis.core import *
from qgis.gui import *
def map_index(source_layer, map_extent, source_attribute, feature, parent):
map_layer = QgsProject.instance().mapLayersByName(source_layer)
map_extent_bounds = map_extent.boundingBox()
records =
for f in map_layer.getFeatures():
f_bounds = f.geometry().boundingBox()
field_name_idx = f.fieldNameIndex(source_attribute)
field_value = f.attributes()[field_name_idx]
result = ','.join(records)

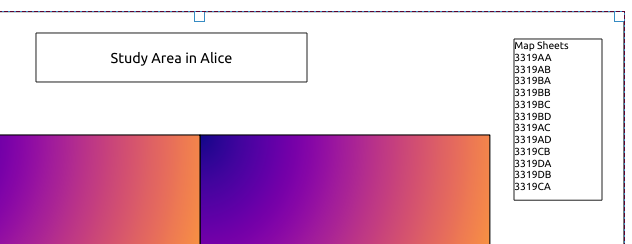

In the map composer, I then added a text box so that I could use the custom function.
replace( map_index( 'index1in50k',map_get(item_variables('main_map'), 'map_extent'),"sh_no"), ',', ' \n')
This will give us the list of map sheets intersecting the layer index1in50k using the attribute sh_no
